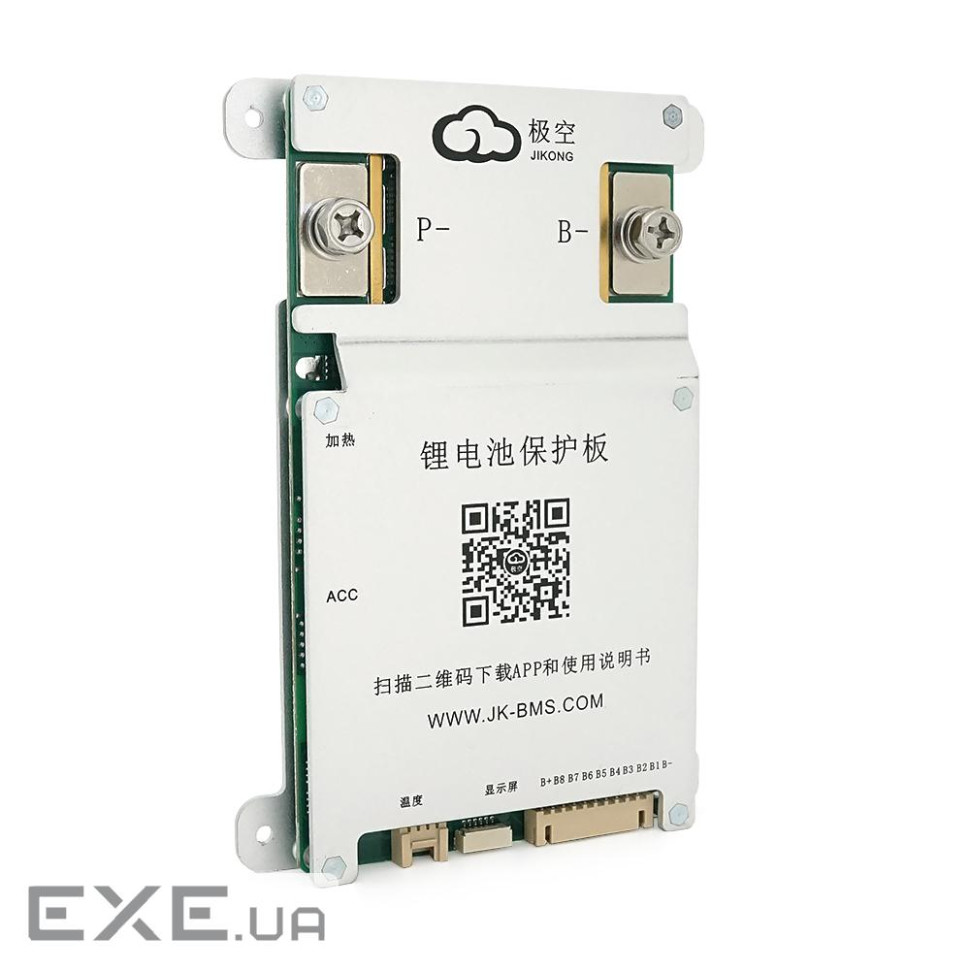

WhatsAppBMS плата JK-B1A8S10P Li-Ion / LiFePo4 / LTO 4S-8S, 100A, CAN / RS485, 0.3m& (B1A8S10P ver NEW-2)
У відділення «Нова пошта»
відправимо: 14.08
Кур`єр по Києву
доставимо: 14.08- Самовивіз (м.Київ, м. Тараса Шевченка)14.08 після 18:00
- Гарантія: 12 міс.
- Обмін/повернення: 14 дн.
Готівка
Приват24
Рахунок з ПДВ 20%
Рахунок без ПДВ
Післяплата (накладений платіж)
Оплата частинами: ПриватБанк
Покупка частинами: Mono
QR + IBAN - Моно, Приват, інші банки ...
Онлайн платіж Visa, MasterCard, Apple Pay, Google Pay| 974 | ||
| 90 | ||
| 19 | ||
| 21 | ||
| 63 |
Опис:
JK-B1A8S10P Smart BMS Board (4S-8S, 100A, 1A Active Balancer, CAN / RS485, Bluetooth, Heating + Push Button) This board is a best-selling solution for creating reliable 12V (4S) and 24V (8S) energy storage systems. It is designed specifically for those building boat batteries (for electric motors and onboard electrical systems), home backup power supplies, RV batteries, or medium-power off-grid solar systems. With its active balancer and support for communication protocols, this BMS ensures maximum battery safety and extends battery life by 1.5–2 times. Key features and why you should choose it: * Ideal for 12V / 24V systems (4S-8S): The board works with all popular chemistry types in this range: LiFePO4 (4S-8S), Li-Ion (4S-8S), and LTO (6S-8S). Changing the mode and cell count is as easy as a couple of clicks in the app.
* True 1A active balancer: Most conventional boards use a passive balancer, which simply heats the board and slowly discharges the cells. This one uses a supercapacitor active balancer. It transfers energy from more charged cells to lower ones at up to 1A, operating continuously: during charging, discharging, and even when the battery is idle. * Ultra-low resistance (0.3 mOhm): Thanks to a powerful power board with ultra-low resistance MOSFET switches, the BMS generates virtually no heat at a rated load of 100 A and easily handles short-term peaks of up to 200 A.
* Inverter communication (CAN / RS485): You can connect the battery directly to smart hybrid inverters (Deye, Victron, Must, Growatt, etc.). The inverter will accurately monitor the battery`s condition, temperature, and current capacity, adapting its operating mode accordingly.
* Intelligent winter heating: The BMS controls the heating elements (heating plates). At sub-zero temperatures, the board will first direct the charging current to heat the cells, and once they have warmed up to a safe temperature, it will initiate the main charge.
* Built-in Bluetooth and a convenient button: Manage all settings (voltage thresholds, protection currents, calibration) directly from your smartphone via the JKBMS app. A remote metal button with LED allows you to manually turn the board on and off. Model JK-B1A8S10P
Cell Configuration (S) LiFePO4 (4S-8S) Li-Ion (4S-8S) LTO (6S-8S)
Nominal Discharge / Charge Current 100 A (continuous)
Peak Discharge Current up to 200 A (short-term)
Active Balancing Current 1.0 A (adjustable)
Power Circuit Resistance 0.3 mOhm
Communication Interfaces Bluetooth, CAN, RS485
Temperature Control 2 External NTC Temperature Sensors + Board Sensor
Heat Function Yes (connects a heater up to 100W)
Device Dimensions 153 × 136 × 18 mm
* Характеристики, комплект поставки та зовнішній вигляд товару можуть відрізнятися від зазначених і/або можуть бути змінені виробником без відображення в картці товару.
