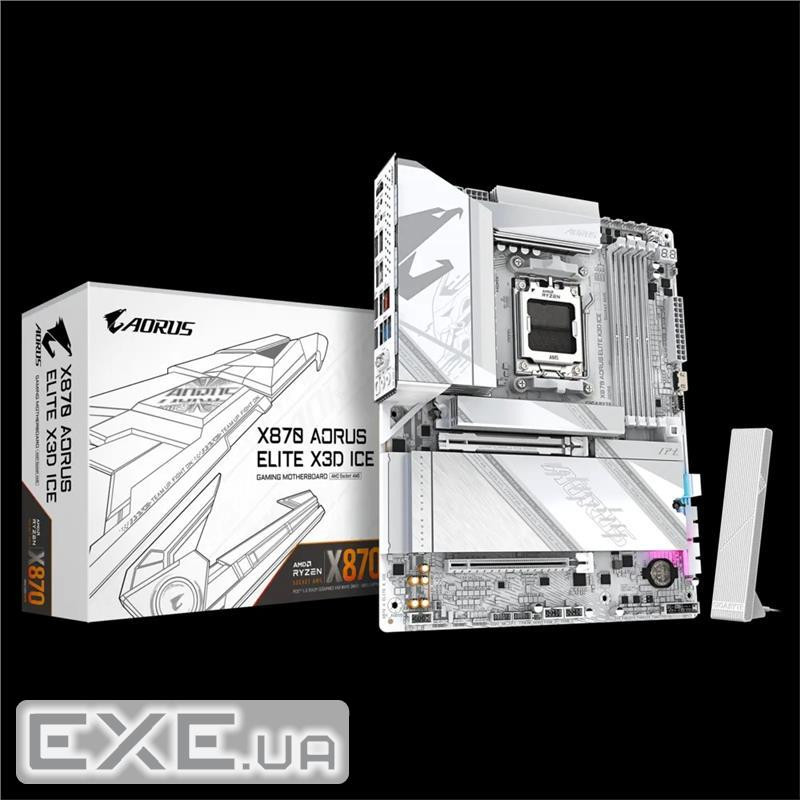

Материнська плата GIGABYTE X870 A ELITE X3D ICE sAM5 X870 4xDDR5 M.2 Wi-Fi BT H (X870 A ELITE X ICE)

Опис:

• Процесор

  AMD Socket AM5, support for:
  AMD Ryzen 9000 Series Processors/
  AMD Ryzen 8000 Series Processors/
  AMD Ryzen 7000 Series Processors
  (Go to GIGABYTE',s website for the latest CPU support list.)

• Набір мікросхем
  (чіпсет)

  AMD X870

• Підсистема
  пам',яті

  Support for DDR5 8800(O.C) / 8600(O.C) / 8400(O.C) / 8200(O.C.)/ 8000(O.C) / 7800(O.C) / 7600(O.C) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5600(O.C) / 5200 / 4800 MT/s memory modules.
  4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
  Dual channel memory architecture
  Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  Support for AMD EXtended Profiles for Overclocking (AMD EXPO ) and Extreme Memory Profile (XMP) memory modules
  (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE',s website for more information.)

• Графічний інтерфейс

  Integrated Graphics Processor with AMD Radeon Graphics support+ASMedia USB4®, Controller:
  - 2 x USB4®, USB Type-C®, ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz

  * Support for DisplayPort 1.4 version and HDR.


  Integrated Graphics Processor with AMD Radeon Graphics support:
  - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

  * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
  ** Support for native HDMI 2.1 TMDS compatible ports.


  - 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz

  * Support for HDMI 1.4 version


  (Graphics specifications may vary depending on CPU support.)

• Аудіопідсистема

  Realtek®, ALC1220 CODEC

  * The back panel line out jack supports DSD audio.


  High Definition Audio
  2/4/5.1/7.1-channel

  * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.


  Support for S/PDIF Out

• Мережевий
  LAN-інтерфейс

  Realtek®, 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)

• Модуль бездротового зв',язку

  Qualcomm®, Wi-Fi 7 QCNCM865
  - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
  - BLUETOOTH 5.4
  - Support for 11be 320MHz wireless standard
  (Actual data rate may vary depending on environment and equipment.)

  * Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)

  ** Wi-Fi 7 channels on 6 GHz band availability depends on individual country',s regulations.

  ***Bluetooth version may change with updates. See the Wi-Fi chip vendor',s website for details.

• Роз',єми для плат розширення

  1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
  AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode
  AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
  AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode

  * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.


  Chipset:
  - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)

  * The PCIEX4 slot shares bandwidth with the M2D_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2D_SB connector.

• Інтерфейси накопичувачів

  1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
  AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
  AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
  AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
  1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
  AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs

  * The M2B_CPU connector shares bandwidth with the ASMedia USB4®, controller.
  When a device is installed in the M2B_CPU connector, both the M2B_CPU connector and the USB4 port supported by the ASMedia USB4®, controller operate at up to x2 bandwidth. When using an AMD Ryzen 8000 Series-Phoenix 1 or Phoenix 2 processor, the USB4 port supported by the ASMedia USB4®, controller operates at up to x2 bandwidth, and the M2B_CPU connector becomes unavailable.


  2 x M.2 connectors (M2C_SB, M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs
  2 x SATA 6Gb/s connectors
  RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices

  * RAID 5 is only available on AMD Ryzen 9000 Series Processors.


  RAID 0 and RAID 1 support for SATA storage devices

• Інтерфейс USB

  CPU+ASMedia USB4®, controller:
  - 2 x USB4®, USB Type-C®, ports on the back panel
  CPU:
  - 1 x USB Type-C®, port on the back panel, with USB 3.2 Gen 2 support
  - 1 x USB 2.0/1.1 port on the back pane
  Chipset:
  - 1 x USB Type-C®, port with USB 3.2 Gen 2x2 support, available through the internal USB header
  - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
  - 4 x USB 2.0/1.1 ports on the back panel
  Chipset+2 USB 3.2 Gen 1 Hubs:
  - 8 x USB 3.2 Gen 1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

• Роз',єми на системній платі

  1 x 24-pin ATX main power connector
  2 x 8-pin ATX 12V power connectors
  1 x CPU fan header
  1 x CPU fan/water cooling pump header
  4 x system fan headers
  2 x system fan/water cooling pump headers
  3 x addressable RGB Gen2 LED strip headers
  1 x RGB LED strip header
  4 x M.2 Socket 3 connectors
  2 x SATA 6Gb/s connectors
  1 x front panel header
  1 x front panel audio header
  1 x USB Type-C®, header, with USB 3.2 Gen 2x2 support
  2 x USB 3.2 Gen 1 headers
  2 x USB 2.0/1.1 headers
  1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
  1 x HDMI port (Note)
  1 x reset jumper
  1 x Clear CMOS jumper
  2 x temperature sensor headers
  1 x noise detection header

  (Note) Actual support may vary by CPU.

• Роз',єми на задній панелі

  1 x HDMI port (Note)
  1 x power button
  1 x reset button
  1 x Q-Flash Plus button
  1 x Clear CMOS button
  2 x USB4®, USB Type-C®, ports (DisplayPort (Note))
  1 x USB Type-C®, port, with USB 3.2 Gen 2 support
  2 x USB 3.2 Gen 2 Type-A ports (red)
  4 x USB 3.2 Gen 1 ports
  1 x USB 2.0/1.1 port
  1 x RJ-45 port
  2 x antenna connectors (2T2R)
  1 x optical S/PDIF Out connector
  2 x audio jacks

  (Note) Actual support may vary by CPU.

• Мікросхема
  I/O-контролера

  iTE®, I/O Controller Chip

• Контроль за станом системи

  Voltage detection
  Temperature detection
  Fan speed detection
  Water cooling flow rate detection
  Fan fail warning
  Fan speed control

  * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.


  Noise detection

• BIOS

  1 x 512 Mbit flash
  Use of licensed AMI UEFI BIOS
  PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

• Фірмові функції та технології

  Support for GIGABYTE Control Center (GCC)

  * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.


  Support for Q-Flash
  Support for Q-Flash Plus
  Support for Smart Backup

• Bundled Software

  Norton®, Internet Security (OEM version)

• Операційна система

  Support for Windows 11 64-bit

• Форм-фактор

  ATX Form Factor, 30.5cm x 24.4cm
